OUR PORTFOLIO

Selected steel detailing projects delivered to fabricators and contractors.

From industrial halls to pedestrian bridges, each project is modelled in Autodesk Advance Steel and documented for fabrication and erection.

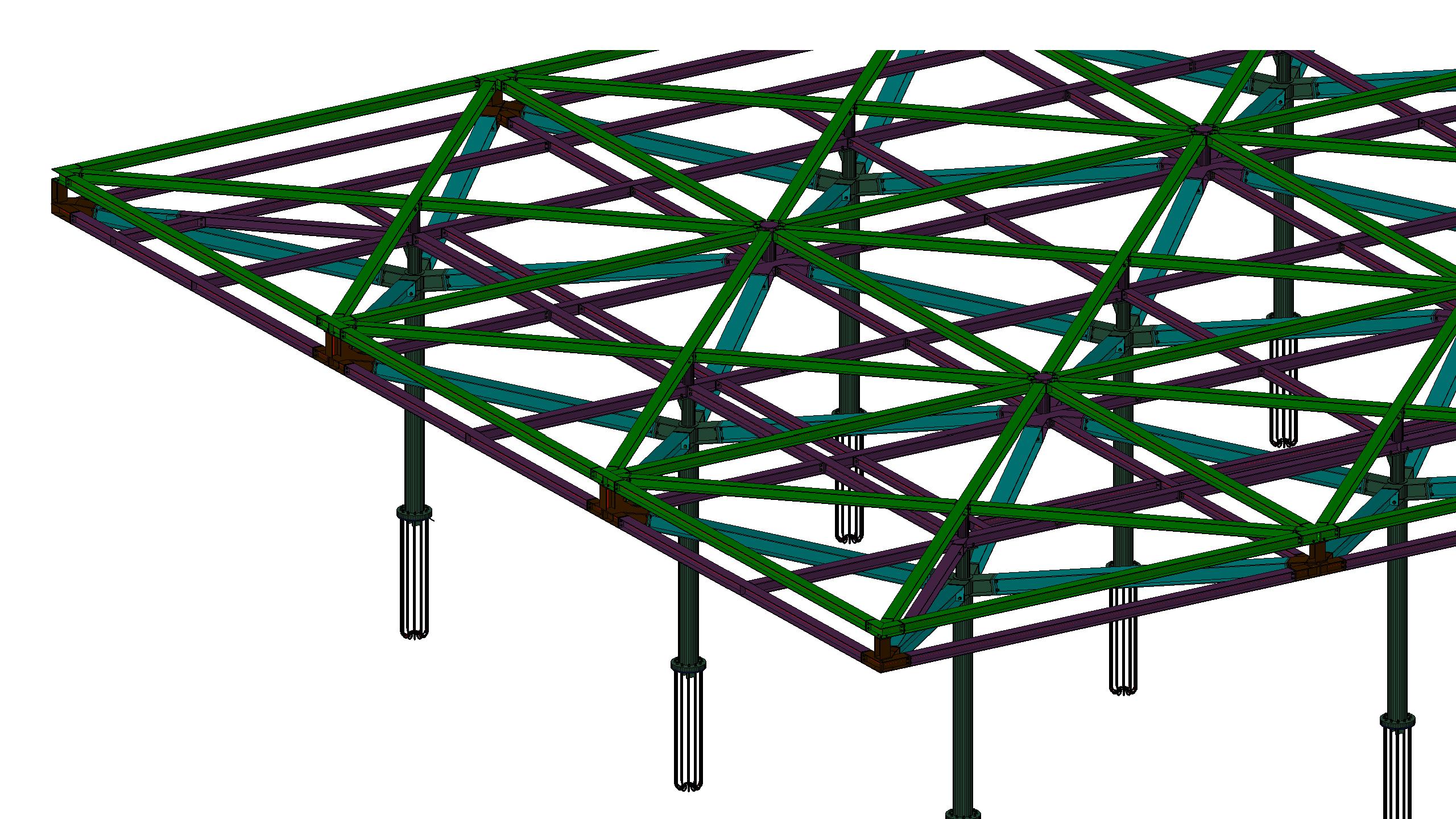

Steel structure of a restaurant building – steel detailing project

Restaurant Structure

Total weight 76 t // Area 880 m²

Circular storage tank roof

Total weight 65 t // Diameter 43 m

3D model of a 43 m oil storage tank steel roof

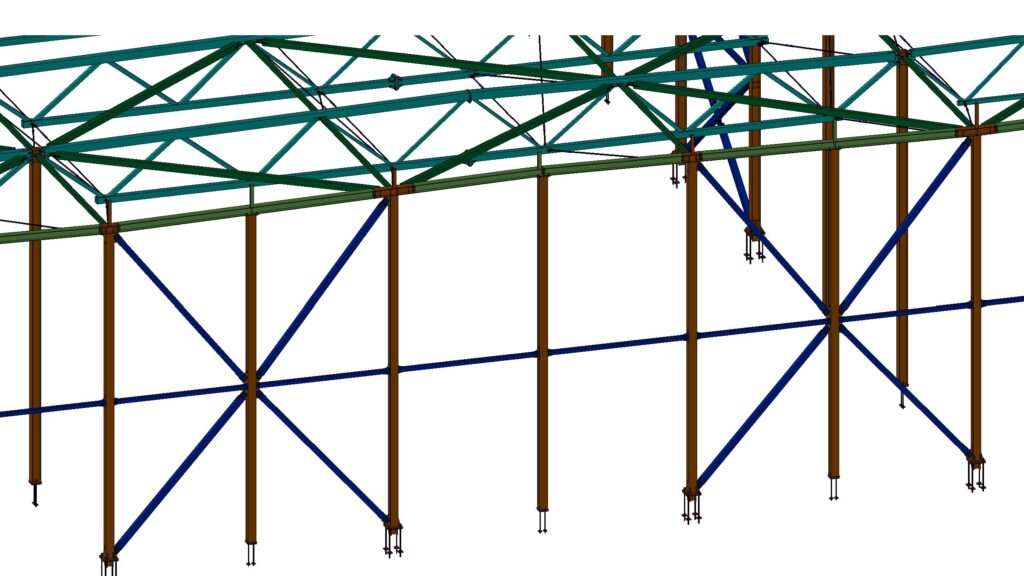

Industrial hall steel structure – 3D steel detailing model

Industrial hall

Total weight 79 t // Area 1500 m²

Pedestrian bridge

Total weight 460 t // Length 135 m

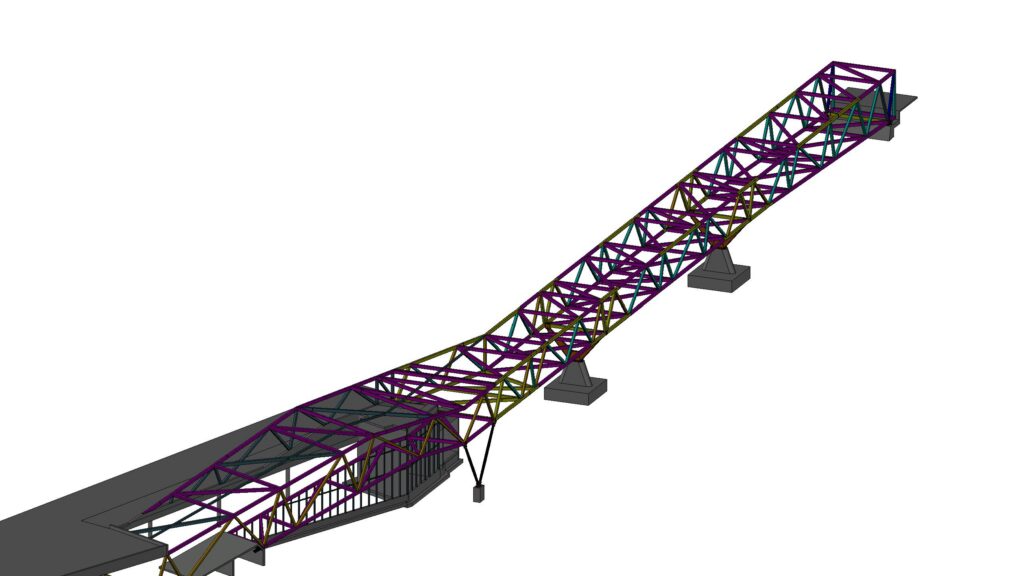

Steel pedestrian bridge at an international airport – Advance Steel 3D model

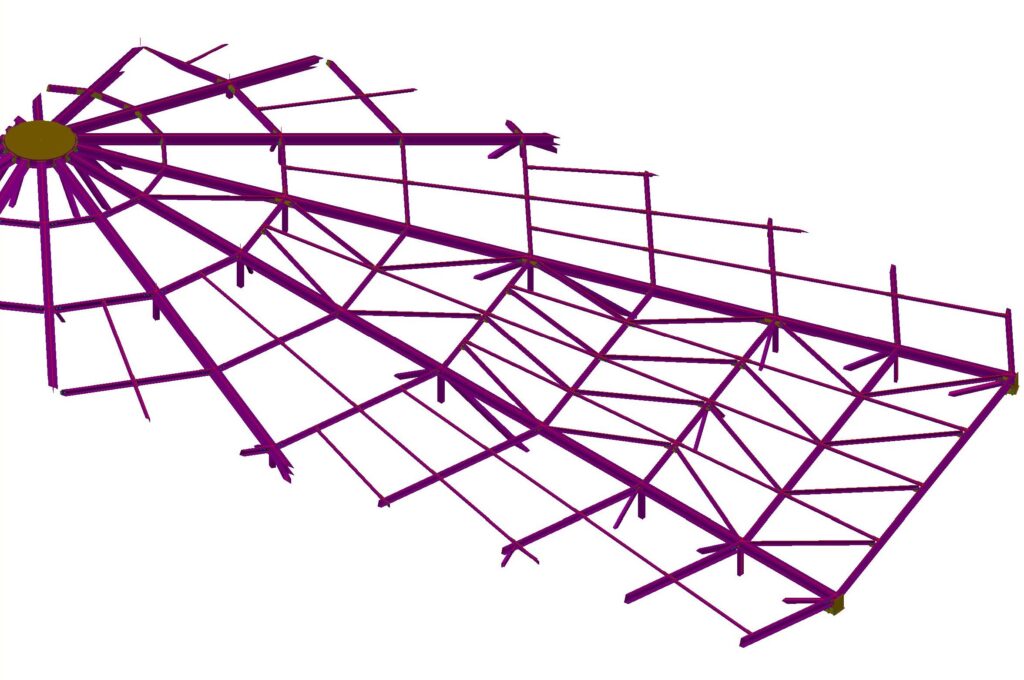

3D model of an oil storage tank steel roof, 30 m diameter

Circular storage tank roof

Total weight 22.5 t // Diameter 30 m

Circular storage tank roof

Total weight 13 t // Diameter 21,5 m

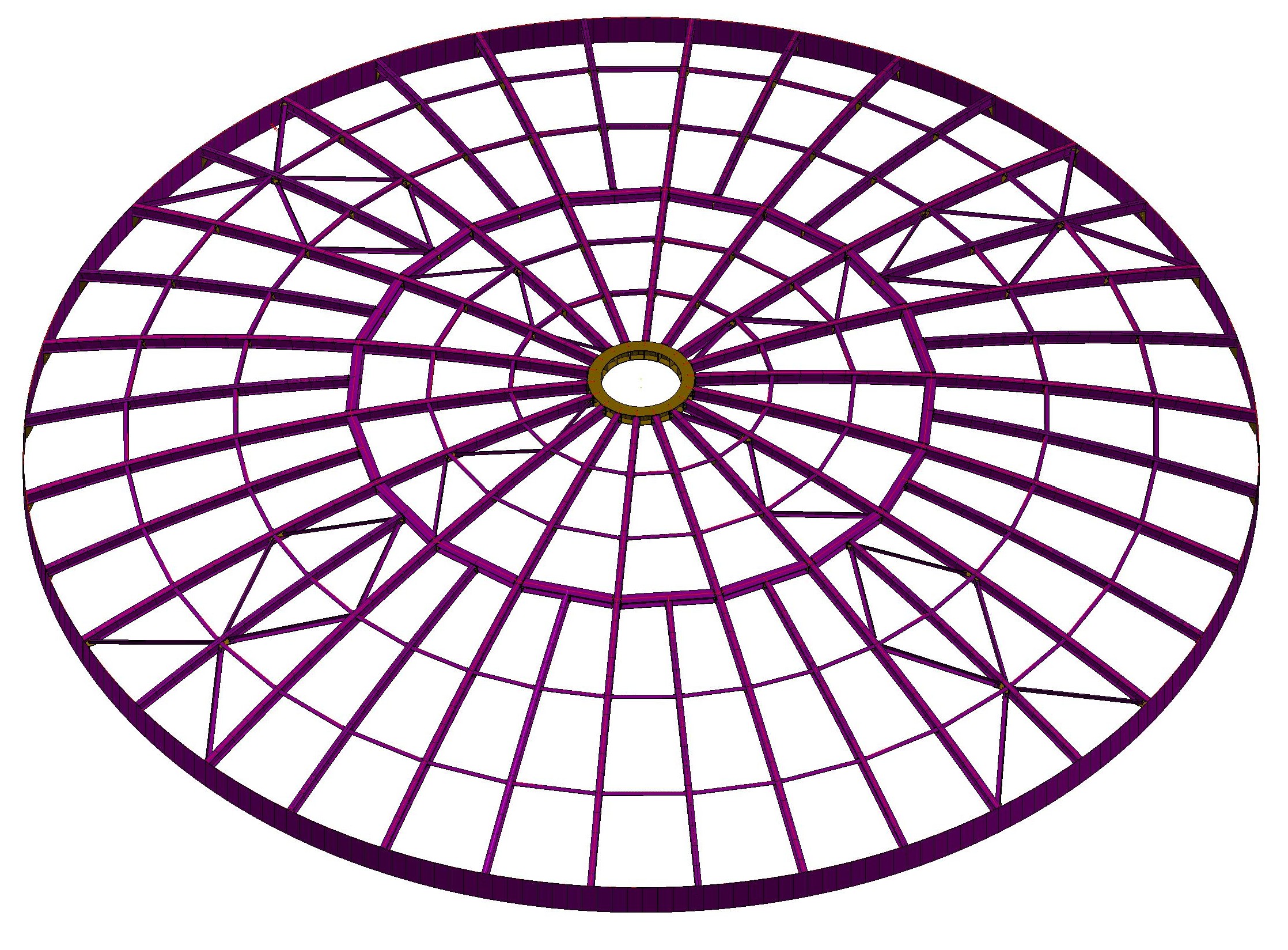

3D model of a 21.5 m water tank steel roof

Collage of 3D steel detailing models: stairs, railings, platforms and canopies

Miscellaneous steel structures

Stairs // Railings // Platforms // Canopies

Have a project to detail?

Send us your structural drawings or model and we’ll come back with a quote.

Request a Quote
